Tone Generator: HI synthesis system, 48kHz sampling frequency, 64MByte PCM ROM, 470 multi-samples + 518 drum samples
Polyphony: 62 voices, 62 oscillators (single mode)/31 voices, 62 oscillators (double mode)
Keyboard:
61 keys and 76 keys; velocity and aftertouch sensing
Effect Section:
Stereo digital multi-effect system--all usable simultaneously
2 Master effects (mono in, stereo out)
1 Insert effect (stereo in/out)
Master EQ (3-band stereo)
Number of Effects: 89 (available for insert effects or master effects)
Programs/Combinations: 512 programs/384 combinations/24 Drumkits, GM - 128 programs + 9 drum kits (ROM)
Sequencer:
16 timbres, 16 tracks, resolution 1/192,
150 preset drum patterns/100 user patterns (for each song),
200 songs, 20 cue lists,
Maximum capacity: 200,000 notes,
Supports TR/TRITON format (.SNG file), Standard MIDI Files (format 0 and 1)
Dual Arpeggiators: Two arpeggiators, useable simultaneously (Combination, Sequencer modes),
5 preset arpeggio patterns; 216 user arpeggio patterns (200 preloaded)
RPPR (Realtime Pattern Play/Recording) Function: One set available for each song.
Controllers: Joystick, 2 assignable switches, 4 assignable knobs, Audition switch, Category switch.
Control Inputs: Assignable switch/pedal, Damper (half/damper supported)
Outputs: MAIN=L/MONO, R, Individual-1, 2, Headphone
SD Card/MEDIA Mode Functions: Load, Save, Utility, Data filer functions (Save/Load of MIDI exclusive data)
CD-ROM (ISO9660 level 1, AKAI S-100/3000 format) loading available (when EXB-SMPL installed)
Media Slot:
SD card slot
2.7~3.6 V compatible
16 MB~1 GB memory capacities supported
USB:
USB-B connector (USB ver.1.1 supported)
MIDI: IN, OUT, THRU
Graphical User Interface: 240 x 64 pixel LCD display with back-light
Power Consumption: 13 W (when EXB-SMPL and 2/32 MB SIMMs are installed)
Dimensions (W x D x H):
61-key: 41.14 x 11.89 x 3.74 in. (1,045 x 302 x 95 mm)
76-key: 49.53 x 11.89 x 3.74 in. (1,258 x 302 x 95 mm)
Weight:
61-key: 7.8 kg (17.2 lbs.)
76-key: 9.2 kg (20.28 lbs.)
Accessories (Included): AC/AC power supply
EXB-SMPL Sampling Upgrade (sold separately):
48 kHz, 16-bit linear
Memory capacity=64MB* (when 2/32 MB SIMMs installed, 16 MB SIMM included with the EXB-SMPL)
4,000 samples / 1,000 multisamples (128 indexes are available per multisample), Time Slice, Time Stretch/Compress, other editing functions
AIFF, WAVE, AKAI (S3000/S1000 samples and mapped multisamples only), Korg format sample data loading are available
Sample data exporting as AIFF, WAVE format available

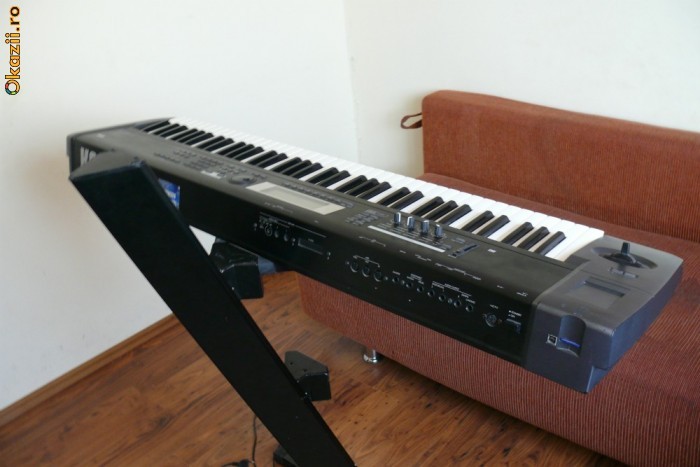

korg tr in stare buna de functionare, mici zgarieturi in urma folosirii. Se vinde impreuna cu husa, sustain pedal si transformator, stativ ultimate. Pretul fara stativ 2500 lei.
